What is the procedure for configuring the RF Analyzer on the G42M (ZU49DR) SOM?

RFSoC Boards & Solutions ZU49/ZU39/ZU29DR
, , ,
1

Please follow the verified procedure below to configure the RF Analyzer:

  1. Ensure the provided BOOT.BIN is used and boot the board from the microSD card.

  2. Confirm and verify that the board has booted till u-boot.

  3. Once the board is booted completely, open RF Analyzer 24.1 using the ‘Run as Administrator’ option.

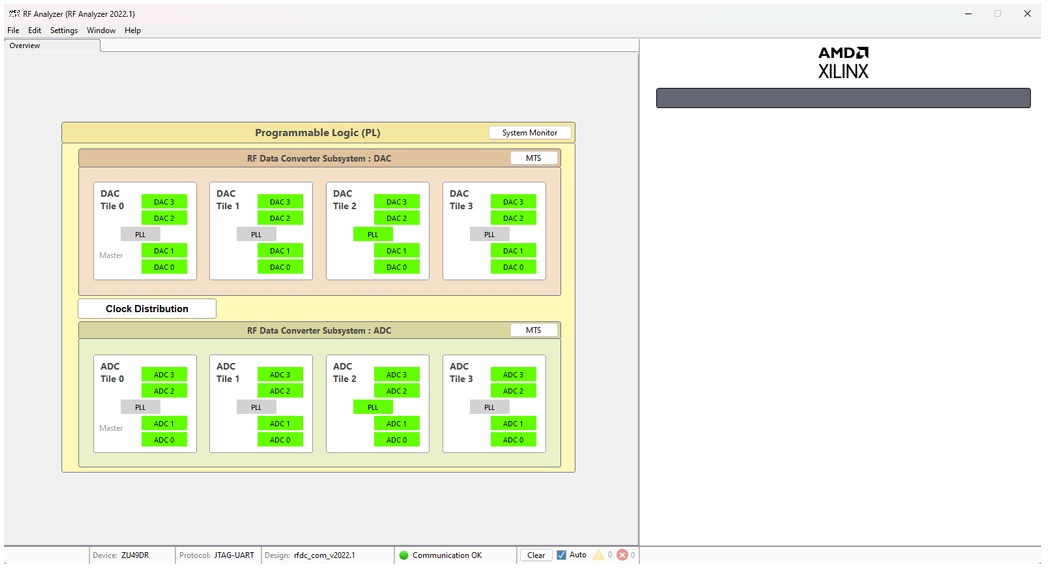

  4. Select Connect button on the RF analyzer and load the Bitstream file (iWave shared Bitstream file) to program the FPGA. Program the board with the shared bitstream file. Upon completion, the interface should match the attached RFanalyzer_configured.png.

RF analyzer communication
RF analyzer communication1061×572 79.6 KB

For further product inquiries, please get in touch with our sales team at mktg@iwave-global.com

Please find the detailed product information here:
ZU49/ZU39/ZU29DR RFSoC System on Module
