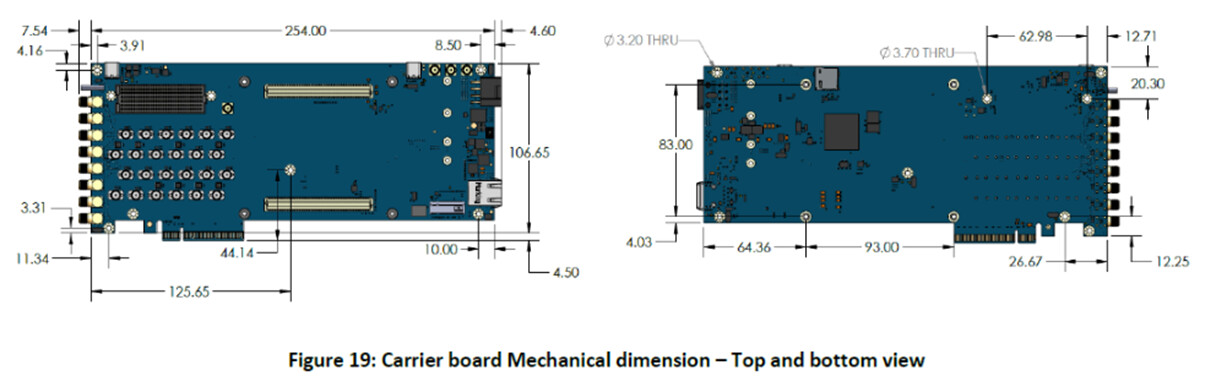

The Zynq UltraScale+ RFSoC (ZU29/39/49DR) iG-G42P development platform features a 254mm x 111.15mm PCB form factor, adhering to the 3/4 length PCIe standard. Detailed mechanical specifications and board dimensions are provided in the Hardware User Guide, and the mechanical drawing is attached for reference.
For peripheral expansion, the board is equipped with a 560-pin FMC+ HPC (High Pin Count) connector. This interface is fully compliant with the ANSI/VITA 57.4 standard, supporting a wide range of standard FMC+ and FMC modules. Comprehensive pinout and implementation details are available in the datasheet.
