What is the status of MCU_GPIO_20 (eth_rst) pin mentioned in iWave device-tree as eth_reset_gpio in G55M OSM SOM? And at which boot-stage is this reset triggered to the PHY?

TI Boards & Solutions TI AM62A
,
1

By default in G55M, a hardware pull-up is provided for the MCU_GPIO_20 pin. Hence, during power-on, the reset pin is pulled HIGH.

Software control of this reset pin is available only in the kernel stage.

For further product inquiries, please get in touch with our sales team at mktg@iwave-global.com

Please find the detailed product information here:

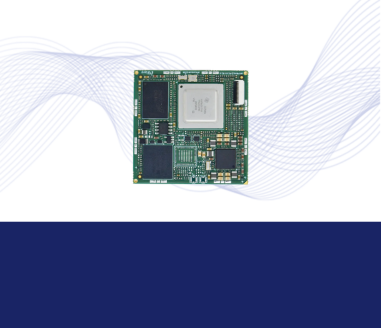

TI AM62Ax OSM-LF System on Module
