What are the steps to resolve the PTP issue on GEM0?

FPGA Boards & Solutions MPSoC Boards & Solutions
,
1

Please follow below steps (provided with images) to resolve the PTP issue on GEM0 in Vivado tool:

  • In Zynq UltraScale+ MPSoC IP, enable GEM0 and configure the MIO pins in the I/O Configuration tab.

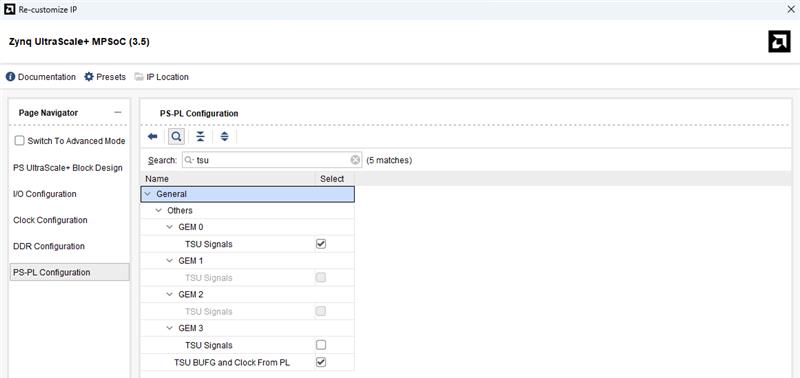

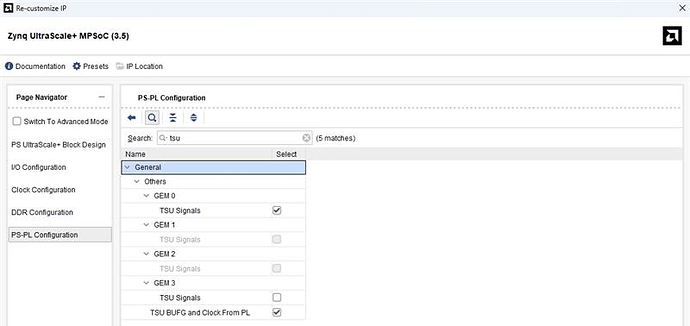

  • In the PS-PL Configuration tab, enable the TSU signal for GEM0, along with TSU BUFG and the clock from PL option.

image3800×378 71.4 KB

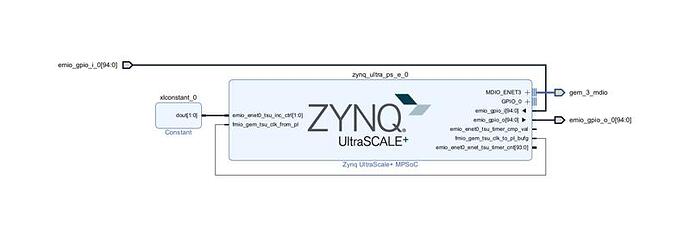

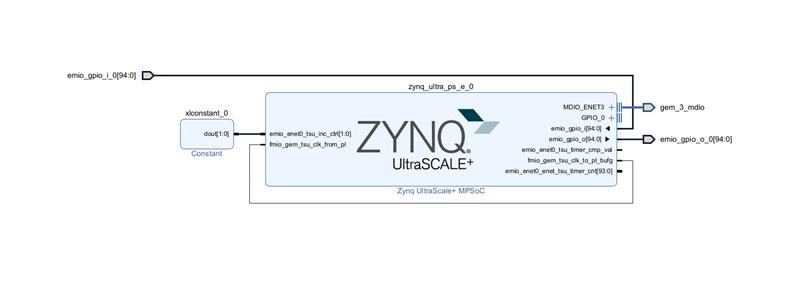

  • Connect fmio_gem_tsu_clk_from_pl and fmio_gem_tsu_clk_to_pl_bufg in a loopback.

Image3800×282 13.1 KB

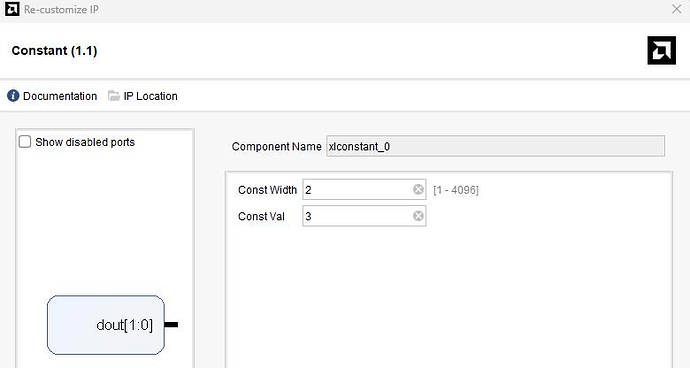

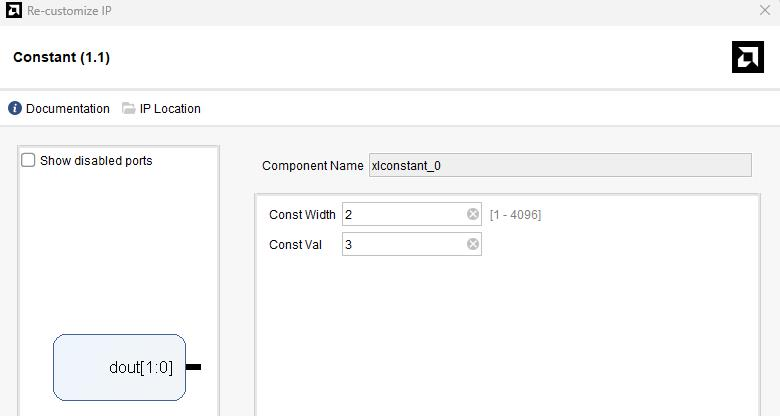

  • Connect emio_enet0_tsu_inc_ctrl to a Constant IP, and set the constant value to 2 ‘b11 to enable normal timer register increments.

image 2
image 2780×416 47.6 KB

With the above steps the XSA and the binaries must be re-compiled.

For further inquiries, please get in touch with mktg@iwave-global.com

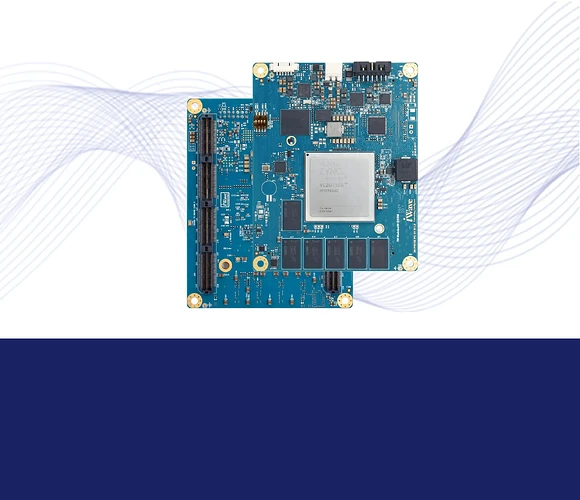

Please find the detailed G65M product information in the below link,
