JTAG Connection:

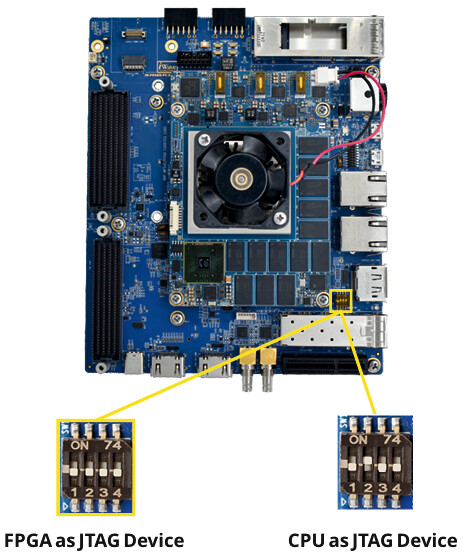

iW-RainboW-G47D Virtex UltraScale+ FPGA SOM Development platform Support JTAG interface in Carrier Board for FPGA and CPU Programming. In the carrier board Config Switch (SW6.2) is provided for selecting the JTAG device between FPGA and CPU.
FPGA JTAG Connection to Carrier Board:

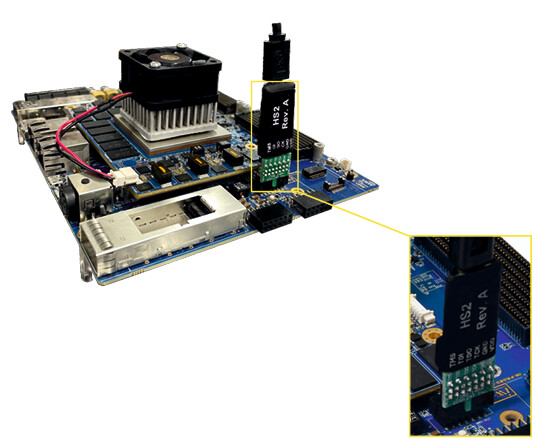

After changing Config switch and selecting the JTAG device as FPGA, Power on the board connect the JTAG cable to the carrier board as shown below.
Example JTAG Cable which is tested with this Platform is mentioned below.
JTAG-HS2 Programming Cable
Part Number: 410-249 from Digilent
CPU JTAG Connection to Carrier Board:

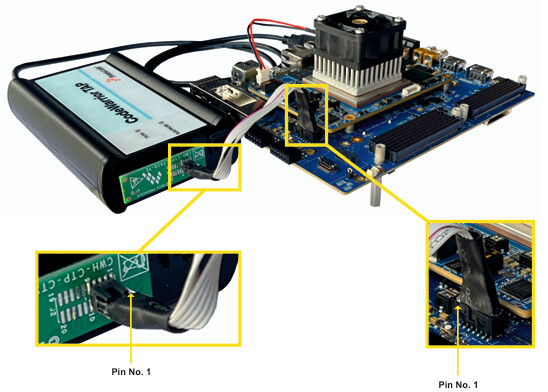

After changing Config switch and selecting the JTAG device as CPU, connect the CodeWarrior® TAP to carrier board via custom made JTAG cable provided from iWave. Connect the CodeWarrior® TAP to the PC through USB and Power on the board.
For further details regarding CodeWarrior® TAP, visit the below link:
https://www.nxp.com/design/software/development software/codewarrior-development-tools/run-control devices/codewarrior-tap:CW_TAP
