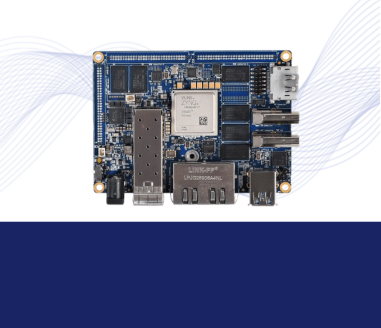

The G35M, G30M and G36S SBC SOM features three LEDs to monitor system power and the functional state of the Zynq UltraScale+ MPSoC.
-
Power-Good Indicator: The Red LED serves as the primary power status indicator. It is tied to the final stage of the SOM’s internal power-up sequence and illuminates only when all internal voltage rails have stabilized. This LED provides a visual confirmation that the SOM’s internal power management system is operating correctly and is stable.
-
PS_ERROR_OUT: A green coloured LED is provided. It is asserted for accidental loss of power, a hardware error, or an exception in the PMU.
-
PS_ERROR_STATUS: A green coloured LED indicates a secure lockdown state. Alternatively, it can be used by the PMU firmware to indicate system status.
Note: LED colours are different in G36S SBC SOM but its functionalities remain same for G35M, G30M & G36S SBC SOM.
For more information please refer MPSoC Configuration & Status in SOM hardware User guide.
For further inquiries, please get in touch with mktg@iwave-global.com
Please find the detailed G35M product information in the below link,
Please find the detailed G30M product information in the below link,
Please find the detailed G36S product information in the below link,
